High Voltage Battery Storage System 64 - 1543kWh 314Ah
Main Features
16.08 kWh per Module
Single cluster (rack) 193kWh, scalable to 1543.2 kWh
6000 cycles (90% DOD 70% EOL)
Wide Temperature Tolerance
High Voltage range
CAN/RS485 Communication with inverter and software computer
LiFePO4 Chemistry – Safest Lithium Technology
Technical Specifications
| Model | HV200-204 | HV200-307 | HV200-409 | HV200-512 | HV200-614 |
|---|---|---|---|---|---|
| Battery Type | LiFePO4 | ||||
| Battery Module | HV200 BOX HV51314*4 | HV200 BOX HV51314*6 | HV200 BOX HV51314*8 | HV200 BOX HV51314*10 | HV200 BOX HV51314*12 |
| Nominal Capacity | 64307Wh | 96460Wh | 128614Wh | 160768Wh | 192922Wh |
| Max. output power | 64kW | 96kW | 129kW | 161kW | 193kW |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512.0V | 614.4V |
| Operating Voltage | 172.8~230.4V | 259.2~345.6V | 345.6~460.8V | 432.0~576.0V | 518.4~691.2V |
| Recommend Discharge Current | 100A | ||||
| Max. Charge/Discharge Current | 200A | ||||
| Peak Discharge Current | 240A @ 30S | ||||
| Battery Module Capacity | 314Ah | ||||
| Built-in Circuit Breaker | 250A | ||||
| Charge Efficiency | 99% | ||||
| Battery Roundtrip Efficiency | 95% | ||||
| Cycle Life | >6000 cycles (90% DOD 70% EOL) | ||||
| COMMUNICATIONS AND MONITORING | |||||
| Compatible Inverters | SVC, Growatt, Goodwe, Solis, Deye, Megarevo | ||||
| Communication ports | CAN2.0, RS485 | ||||
| WiFi interface | Yes, for remote monitoring | ||||
| LCD Display Information | Real-time voltage, current, power, SOC, temperature, charge/discharge status, alarms | ||||
| GENERAL | |||||
| Max Parallel Connection | Up to 8 units (1543.2 kWh max, may require additional hardware) | ||||
| Scalable Design | Modular 4–12 battery modules per rack | ||||
| IP Rating of Enclosure | IP20 | ||||
| Design Life | 10 Years | ||||
| Installation Location | Indoor Rack Mounting | ||||
| Operating Temperature | Charge: 0–50°C; Discharge: −20–60°C | ||||
| Storage Temperature | −5–35°C | ||||
| Recommend Depth of Discharge | 90% | ||||
| Humidity | 5–95% (No Condensing) | ||||
| Altitude | Max. 3,000m | ||||
| DIMENSIONS & WEIGHT | |||||
| Machine Dimension (W*H*D)(mm) | HV200 BOX: 498*210*740 | ||||
| System Cabinet Dimension (W*H*D)(mm) | 576*1465*780 / 576*1967*780 / 1090*1465*780 / 1090*1716*780 / 1090*1967*780 | ||||
| N.W(kg) | HV200 BOX: 19.5 / HV200 Series: 512, 746, 988, 1226, 1462 | ||||
| PROTECTION | |||||
| Main Protection Device | 250ADC Breaker & Overcurrent Fuse | ||||
| Internal Protections | Over/Under Voltage Protection, Over Current Protection, Over Temperature Protection, Short Circuit Protection, Active Cell Balancing, Temperature Monitoring & Protection | ||||
| CERTIFICATION & STANDARDS | |||||
| Safety | IEC62619, MSDS | ||||
| EMC | EN IEC 61000-6-1/2/3/4 | ||||
| Transportation | UN38.3 | ||||
The technical specifications of this document are subject to change without any notice.
We are a leading manufacturer of electronic power supply equipment in China, with over 20 years of industry experience.
Initially specializing in UPS systems, we have since expanded our product range to solar system components, such as solar inverters, energy storage batteries, and home energy storage systems.
Our products are now exported to more than 60 countries worldwide, with a diverse product portfolio and a monthly production capacity of up to 150,000 units.
- Excellent Quality Control: We have first-class QC team to ensure each product batch is qualified.
- Customization: Supported by a dedicated research and development team, we offer tailored OEM and ODM services to meet the specific needs of our clients.
- Warranty and Technical Support: We stand behind the quality and reliability of our products with comprehensive after-sales support.

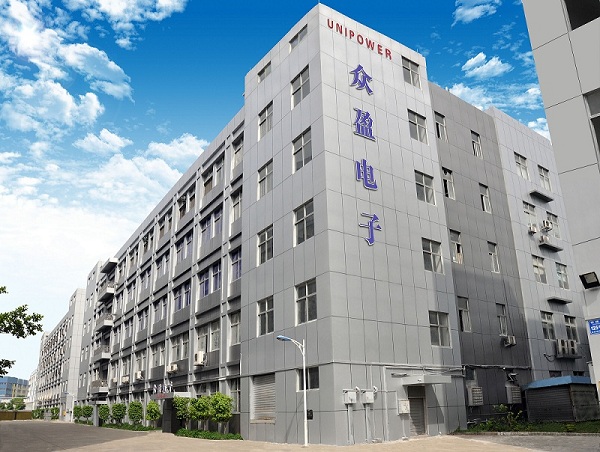

We have own factory with ISO 9001:2008 and ISO14001:2004 certified. With a strong commitment to innovation and excellence, we aim to provide reliable and efficient power solutions to meet the needs of our global clients.

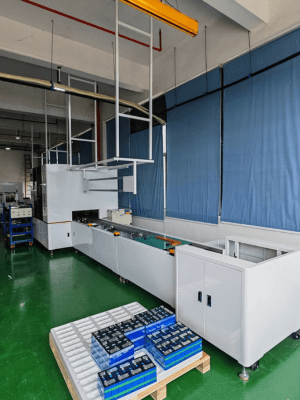

Timely delivery of orders to our customers is our top priority. At Unipower, we have 19 production lines, covering 16,000 square meters. Monthly production capacity is up to 150,000 units.

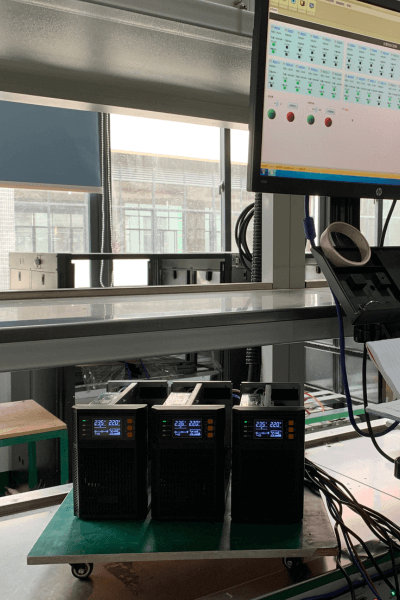

The factory is equipped with 33 sets of fully automatic SMT lines, more than 10 sets of automatic insertion equipment, ICT PCB testing equipment, ATE automatic testing center and aging workshop for all products.

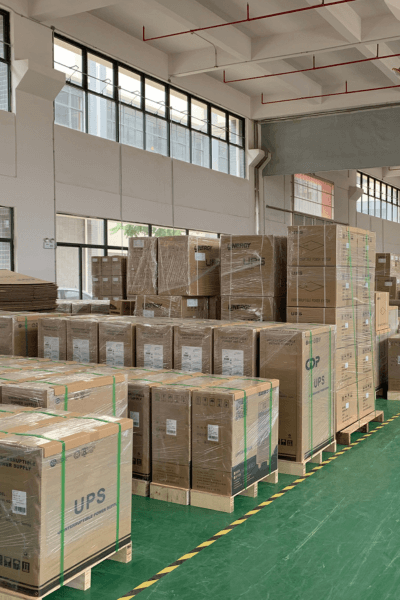

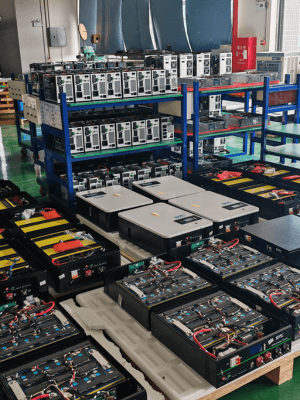

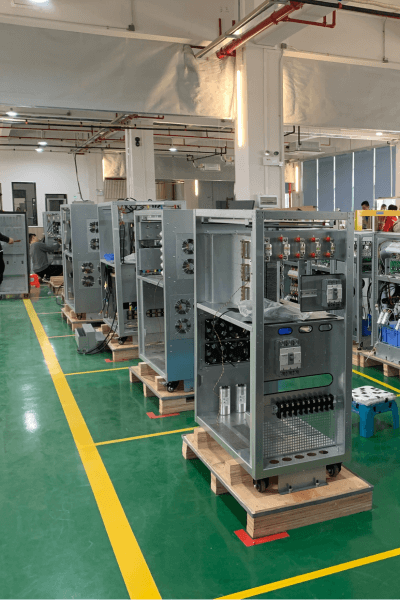

Testing, Assembling and Warehousing
