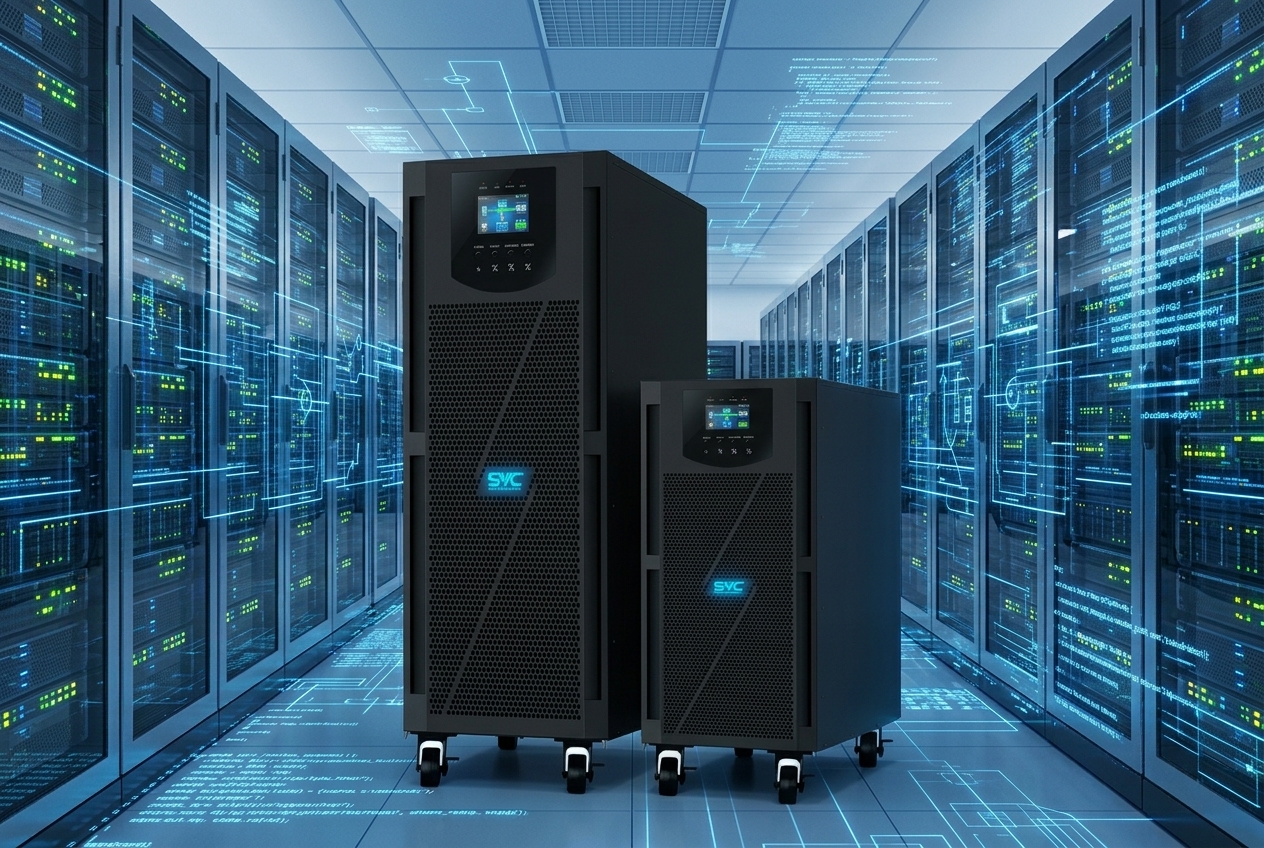

SVC PT33 Transformerless UPS Series: The High-Efficiency, Fast-Maintenance Backup Solution for Mission-Critical Loads

For decades, facilities managers and IT directors relied on conventional tower Uninterruptible Power Supply (UPS) systems. However, as infrastructure density grows and energy costs surge, traditional tower architectures are rapidly exposing four critical vulnerabilities: High Energy Losses & Thermal Overhead, Inflexible & Costly Expansion, Severe Downtime During Maintenance (High MTTR), Complex Integration & Hidden CapEx. To solve this dilemma, SVC PT33 online UPS series pair the rugged simplicity and cost-effectiveness of tower units with the rapid serviceability of modular architectures.

PT33 Series vs. Fully Modular UPS: Why SVC Delivers Superior ROI

While fully modular UPS systems (rack-mounted modular frames) offer granular power expansion, their extreme cost and structural complexity often make them impractical for small-to-medium enterprise (SME) budgets. The SVC PT33 10-200K Transformerless UPS Series bridges this gap as a high-value Semi-Modular UPS.
Feature / Metric Fully Modular UPS SVC PT33 Series B2B Procurement Advantage
Initial Capital Expenditure (CapEx) High (expensive chassis, backplanes, & redundant controllers) Optimized (Up to 30–35% lower initial investment) Maximizes purchasing power without sacrificing core reliability.
Maintenance & Serviceability Hot-swappable sub-modules Front-Access Pluggable Power Modules Achieves minute-level MTTR via rapid module swaps without complete teardowns.
Internal Architecture Complexity High (multi-node bus communication risks) Streamlined Centralized Control + Pluggable Power Reduces internal communication failure points and logic conflicts.
Integrated Distribution Rarely built-in (requires external PDU/switchgear) Built-in 4 Maintenance & Input Switches
Eliminates external switchgear costs and shortens field installation time.
By combining pluggable power module convenience with a high-density footprint, the SVC 10-200K series delivers the maintenance agility of modular systems at a fraction of the total cost of ownership (TCO).

Highlights of PT33 Series Transformerless UPS System

  • Transformerless Topology & Active PFC

By eliminating heavy, legacy low-frequency isolation transformers, the SVC 10-200K series dramatically cuts internal copper losses, reduces equipment weight, and minimizes overall dimensions. Integrated Active Power Factor Correction (PFC) across all phases ensures clean power draw from the grid without introducing harmonic distortion back into facility wiring.

Relevant articles: High Frequency UPS vs. Low Frequency UPS

  • Unity Output Power Factor (PF=1.0)

In the 30kVA to 200kVA range, the SVC series delivers a Unity Power Factor (PF=1.0), meaning 100kVA = 100kW. Modern IT hardware—such as hyper-converged infrastructure (HCI), blade servers, and AI compute clusters—utilize high-efficiency power supplies that demand real active powerkW. With PF=1.0, facilities get 100% usable real power output without needing to oversize the UPS rating.

(Note: The 10kVA–20kVA models operate at an efficient PF=0.9, perfectly tuned for decentralized workstation arrays).

  • Front-Access Pluggable Power Modules

When servicing is required, engineers do not need to pull the entire chassis out or disconnect complex field wiring. The front-access pluggable module architecture allows quick access to power stages, drastically reducing Mean Time to Repair (MTTR) and keeping facility maintenance straightforward and safe.

  • Built-in 4 Internal Protection Switches

Includes Mains Input, Bypass Input, Output, and Maintenance Bypass switches right out of the box. Facilities avoid the extra cost and footprint of installing external manual bypass panels.

  • 7-Inch Touchscreen LCD Display

Provides real-time visualization of dynamic power flows, voltage metrics, battery health, and load percentages, allowing facility managers to assess health status at a glance.

  • Emergency Power Off (EPO) & Frequency Conversion

Features dedicated EPO terminals for immediate shutdown during building emergencies, along with flexible $50\text{Hz} / 60\text{Hz}$ frequency conversion modes for global marine or specialized industrial equipment.

Summary & Technical Consultation

The SVC 10-200K Transformerless UPS Series presents a modern alternative to overpriced modular frames and hard-to-maintain legacy towers. By uniting Unity Power Factor efficiency (PF=1.0), front-access pluggable maintenance, shared battery parallelability, and integrated switchgear, it offers an ideal balance of low CapEx, minimal operational TCO, and enterprise-class reliability.
